Tracking Room SpaceTracking Room space after built in shelves were ripped out. | Hydraulic CementDoing preventative waterproofing by filling rebar holes and a couple small cracks with hydraulic cement and cement caulk. | Hydraulic Cement |
---|---|---|
Preventative Waterproofing | Control Room Space | Waterproofing sealantCement waterproofing sealant |
Waterproofing Sealant | Preventative Waterproofing | Waterproof Sealant Done |
Denim InsulationFilling in cavities with denim insulation. This is the back of a closet and bedroom, so a second wall will be built besides this wall. | First Wall of Double WallInsulation of first wall of a double wall on back of a closet and bedroom. | Mass Load VinylCovering first wall of the double wall with mass load vinyl, 1lb/sq inch. |
Mass Load Vinyl | Mass Load Vinyl | Soundproof DoorThis is the door that will be between the control room and tracking room. 2 3/4" thick, layered solid wood, which weighs about 350 pounds. |
Soundproof Door | Sound Proof WindowThe frame for the sound proof window. Weighs about 65 pounds. | Soundproof WindowThe 2 glass panes for the soundproof window. Control room side is 1" thick and the tracking room side is 3/8" thick and will be angled downward. |
Soundproof Window Glass | Custom Wall PlateCustom wall plate manufactured by Whirlwind in New York. Laser etched labels and studio logo. | Custom Wall Plate |
Studio FramingStudio framed by Mark Williamson of Williamson Remodeling. Framed with 2x6 studs and ready for rough electrical and HVAC. | Studio FramingLooking from entrance into studio towards soundproof window and door, into tracking room. | FramingTracking room framing |
Tracking RoomFramed tracking room | FramingLooking from tracking room towards control room. | ElectricalElectrical done by DJS Electric. Control room electrical and no outlets on outside walls to help maintain integrity of soundproofing. |
LightingLED can lights with faders. Will be interesting if any buzz is picked up by mics, but can change out the LEDs for regular bulbs. | Lighting | ElectricalElectrical in tracking room |
ElectricalElectrical in tracking room | HVACHVAC done by Cardinal Heating and Air in Sun Prairie. | Sound BafflesHVAC includes a 9" sound baffle on each send and return, which helps eliminate sound transmission through the HVAC. |

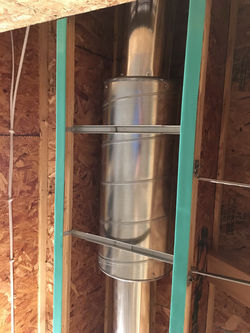

HVAC Sound BaffleAnother sound baffle | Bulkhead InsulationInsulating around HVAC in bulkheads and ceiling | Ceiling InsulationInsulating around lights and HVAC in ceiling |
Bulkhead Insulation | Ceiling InsulationInsulating around sound baffle | Electrical PuttySoundproofing electrical putty around outlets to help reduce sound transmission through outlet boxes. |
Electrical PuttyElectrical putty on and partially around can lights. | Electrical Putty | More Mass Load VinylUsed a total of 20 rolls of mass load vinyl in the walls and ceiling. There are 17 rolls pictured here at 100 lbs per roll. |
Denim InsulationThe rest of the denim insulation. 12 of the 24 bundles pictured here. 5 batts in each bundle. Batts are 5.5" thick by 16.25" wide by 94" long | Denim InsulationThe other 12 bundles of denim insulation | Denim Insulation |
Insulating WallsInsulating walls with a few sections double insulated. | Ceiling/Wall InsulationDouble layered insulation in the ceiling. | Insulation |

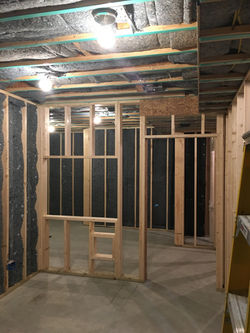

Insulation | IMG_2933 | Mass Load VinylOutside walls covered in mass load vinyl |
Mass Load VinylLower row of vinyl hung in control room and tracking room. Also finished insulation on the outside walls. | Mass Load Vinyl | Mass Load Vinyl |
Mass Load Vinyl | Mass Load Vinyl | Control RoomFinished mass load vinyl in control room |
Control Room Vinyl |
